6063- T5 Silvery , Black Industrial Aluminium Profile / Cylinder
Shell
We have a wide range of Aluminum Extrusion for Industry including :
1. Alloy:6060/6061/6063/6082/6005 etc T6/T5 are available;
2. Length <=13 meters
3. Surface treatment: Mill, Anodized, Powder Coated, Wooden
Transfer, etc
4. Fabricator: cutting, milling, punch, stamping, drill, CNC,
assembly, package. etc.
5. One-stop Service: Mould, Extrusion, Finishing, Fabricator and
Assembly, Delivery.
6. Any OEM and design are welcome.
Description:

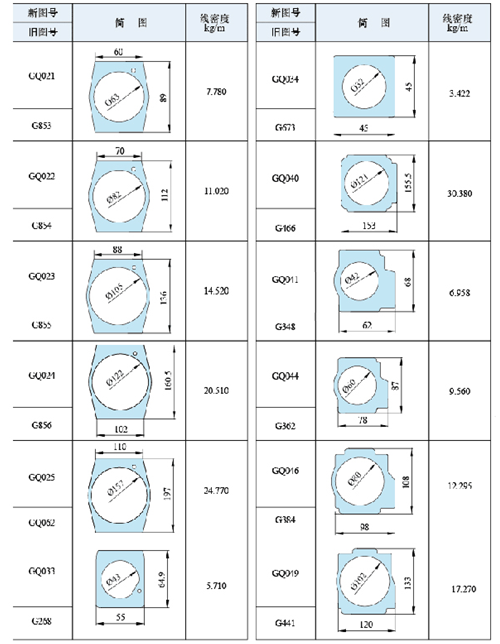

Item | Aluminum extruded cylinder shell with CNC machining |
Material | Alloy 6063, 6061 ,6005,6060 or according to customer’ s choice |
Temper | T4, T5, T6,T66 |
Surface | Anodize (clear, satin, bronze, black, golden, silver, other
multicolor) , electrophoresis, powder coating, PVDF coating, wood
grain painting, etc. |
MOQ | 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40
feet container. |
Usage | Widely used in the instruction and electronic areas |
Machining | High-precision machining available upon request (lathe/milling/CNC
machining/polishing/punching/drilling/taping, etc.) |
Moulding | 1. Using our moulds, free; 2. Using customer’ s drawing, opening
mould fee need to be paid . |
Certificate | ISO14001:2004, ISO9001:2000 |
FOB Port | Shanghai, etc. |
ADVANTAGES of choosing Hentec Alu.:

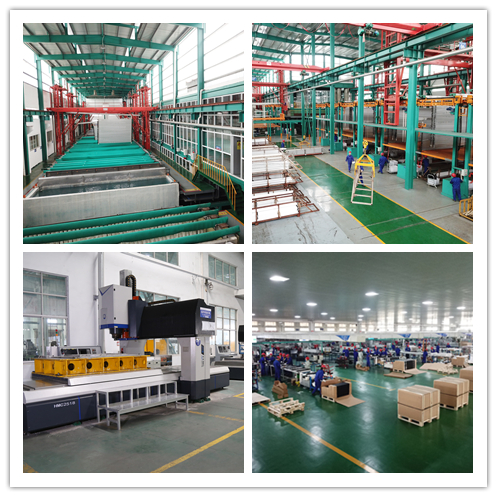

--1--. QUALITY GUARANTEED: One-stop service, tool design, smelting,
extruding, machining, surface treatment, packing as well as
assembling can be all finished in house.
--2--. RELIABLE QUALITY: Our company is ISO9001: 2008 certified
--3--. High Efficiency: Most competitive price with short lead time
for tooling design and the parts
--4--. Efficient communication (48-hour quotes price/lead time/MOQ)
--5--. Compliant test with RoHS
Quotation is usually based on:
1) Detail drawings;
2) Buyers' samples;
3) Specification, pictures of the products.
Applications:
Industry Aluminum profile used in cars, trains machinery
,electronics, medical and other industrial filed . In terms of
hardware, machinery, electromechanical parts, solar PV products,
aluminum frames are adopt as important auxiliary materials. We also
have aluminum profiles for radiators, fitness machinery, buildings,
lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2)Mechanical property
Alloy | Temper | Tensile strength | Yield strength | Elongation |
6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% |
6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminium profiles deeply
processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and
whole inspection before package.
4) Good performance, product warranty for 15 years.
