    Alodine Aluminum Heat Sink Extrusion , Standard Extrusion Profiles With CNC Machining

    Ask Lasest Price
    Brand Name : HENTEC
    Certification : CA ,CE
    Payment Terms : T/T ,L/C
    Supply Ability : 100 000ton each month
    Delivery Time : 20days
    • Product Details
    • Company Profile

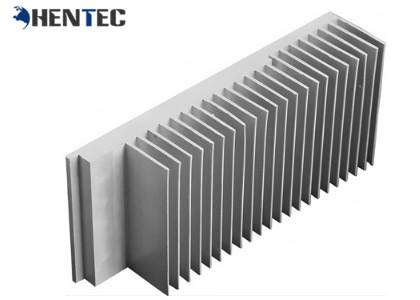

    Alodine Aluminum Heat Sink Extrusion , Standard Extrusion Profiles With CNC Machining


    Alodine Aluminum Heatsink Extrusion Profiles With CNC Machining


    Advantage

    1. We have our own factory and can provide products with good quality and competitive prices
    2. Our products are exported to many countries and regions and have good reputation
    3. Eco-friendly,safe,easy to use


    Description :


    Product Name:Heat eat sink aluminum profile for customization
    Business Type:Manufacturer
    Extrusion Line:7 extrusion lines and monthly output can reach 2500 tons.
    Production Line:2 anodized line, 2 powder coating line, 1 wood grain line.
    Product Capacity:Anodizing Electrophoresis monthly output is 1000 tons.
    Powder Coating monthly output is 600 tons.
    Wood Grain monthly output is 300 tons.
    Alloy:6063/6061/6005/6060/6082
    Temper :T5/T6/T4
    Standard:China GB high precision standard.
    Thickness:Based on your requirements.
    Length:5.8m is suitable for loading and delivery. And we can produce any length you want.
    MOQ:Normally 1 ton. Usually 15 tons for 1*20GP and 20~23 tons for 1*40HQ.
    Surface Finish:Mill finish, Anodizing, Powder coating, Wood grain, Polishing, Brushing, Electrophoresis.
    Color We Can Do:Silver, black, white, bronze, champagne, green, gray, golden yellow, nickel, or customized.
    Film Thickness:Anodized:Customized. Normal thickness: ≥8 um.
    Powder Coating:Customized. Normal thickness: 40-120 um.
    Electrophoresis Complex Film:Normal thickness: 16 um.
    Wood Grain:Customized. Normal thickness: 60-120 um.


    Applications:

    Aluminum heat sink is widely used on Machines , cars , lighter ...


    Specifications:

    1. Primary Technical Data

    1)Chemical composition

    Alloy

    Si

    Fe

    Cu

    Mn

    Mg

    Cr

    Zn

    Ti

    Impurity

    Al

    6063

    0.2-0.6

    0.35

    0.1

    0.1

    0.45-0.9

    0.1

    0.1

    0.1

    0.15

    Rest

    6061

    0.4-0.8

    0.7

    0.15-0.4

    0.15

    0.8-1.2

    0.04-0.35

    0.25

    0.15

    0.15

    Rest

    6060

    0.3-0.6

    0.1-0.3

    0.1

    0.1

    0.35-0.6

    -

    0.15

    0.1

    0.15

    Rest

    6005

    0.6-0.9

    0.35

    0.1

    0.1

    0.40-0.6

    0.1

    0.1

    0.1

    0.15

    Rest


    2) Mechanical property

    Alloy

    Temper

    Tensile strength

    Yield strength

    Elongation

    6063

    T5

    ≥ 160Mpa

    ≥ 110Mpa

    ≥ 8%

    T6

    ≥ 205Mpa

    ≥ 180Mpa

    ≥ 8%

    6061

    T6

    ≥ 265Mpa

    ≥ 245Mpa

    ≥ 8%


    Competitive Advantage:

    1, This aluminum extraction profile for heat sink offers excellent engineering design and technical support .

    2, With the deep processing ,it will be cut ,punched ,drilled ,milled and then fabricated into the finished product .

    3, It is guaranteed on the excellent performance for as long as 15 years .
