6061 Conductive Oxide Heatsink Extrusion Profiles For Industrial Computer

Ask Lasest Price
Certification :	CA ,CE
Payment Terms :	T/T ,L/C
Supply Ability :	100 000ton each month
Delivery Time :	20days

Add to Cart

Product Details
Company Profile

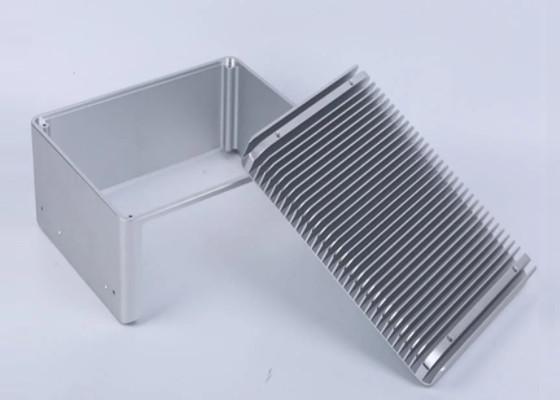

6061 Conductive Oxide Heatsink Extrusion Profiles For Industrial Computer

Rectangle Copper Heat Sink / Heatsink Aluminum Extrusion Profile

Our Advantages:

1. 15+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to 40+ countries;
2. ISO: 9001:2008, RoHS, SGS, Reach.
4. 100% new material
5. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
6. Effective and strong technical support (30+ engineers) and excellent sales services (20+ sales representatives).
7. Sufficient production capacity (20 extrusion lines; 2+ CNC machines; only 65% occupied).
8. Efficient communication (48-hour quote lead time).

Material available	Aluminum Alloy
Surface treatment	Anodizing ,Powder painting , polishing, brush, wire drawing, etc.
Processing	Cutting, Stamping, Welding, Tapping, Bending and Forming, Machining, Surface treatment, Assembly
Specification	OEM/ODM, as per client' s drawing or sample
Certificate	ISO9001:2015/SGS/RoHS
Software	Auto CAD, Soliworks, PDF
Application	Automotive parts, railroad parts,medical parts, marine parts, lighting parts, pump body, valve parts,architectural parts and furniture parts, etc.

Order,payment,terms,shipment

1, Minimum order quantity : 500 kg per trial order 1 piece of sample free of charge provided by approval and kept for future mass production.

2, Sample Lead Time: 25 workdays (15 days for making the tool and 10 days making the samples. Before sending the samples to customer, samples should pass strict test in our lab. )

Production Lead time: it depends on customers' order quantity ( 30 working days after deposit).

3, Payment : T/T ,L/C

Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...

Specifications:
1. Primary Technical Data
1)Chemical composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	Rest
6060	0.3-0.6	0.1-0.3	0.1	0.1	0.35-0.6	-	0.15	0.1	0.15	Rest
6005	0.6-0.9	0.35	0.1	0.1	0.40-0.6	0.1	0.1	0.1	0.15	Rest

2) Mechanical property

Alloy	Temper	Tensile strength	Yield strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

Competitive Advantage:
1, This aluminum extraction profile for heat sink offers excellent engineering design and technical support .
2, With the deep processing ,it will be cut ,punched ,drilled ,milled and then fabricated into the finished product .
3, It is guaranteed on the excellent performance for as long as 15 years .
