6063 Anodized Assembly Line Aluminium Extruded Profiles , T Slot /
V Slot
MetalPlus ( Hentec ) has introduced foreign advanced equipment, our
technical performance is leading technology,energy saving and
environmental production. We have complete produce lines, including
extruding , anodize, electrophoresis, powder coating, wood grain
transfer, fluorocarbon powder coating, and other construction and industrial
profiles which are widely used in building windows and doors, large
curtain wall, high-grade decoration and industrial manufacturing.
Product Specification
| Aolly | 6063 | 6061 | 6060 | 6005 | 6082 | | |
| Temper | T4 | T5 | T6 | T66 | | | |
| Standard | DIN | AAMA | AS | CHINAGB | | | |
| Certification | ISO9001: 2008 |
| Surface Finish | Mill finish | Anodizing | Powder Coating | Wood Grain | Electrophoresis | Polished | Brushed |
| Color | Anodizing | Silver, bronze, champagne, titanium, nickel, golden yellow, etc. |
| Anodizing thickness is up to 25um |
| Powder Coating | White, black, bronze, grey, green, etc |
| Powder coating thickness is more than 60um |
| Electrophoresis | Silver, golden yellow, black, champagne, etc |
| Polishing | Silver, golden yellow, black, etc |
| Brushing | Silver, golden yellow, black, bronze, etc |
| Machining | Cutting, punching, drilling, bending, weld, mill, CNC, etc. |
| OEM customized aluminium profiles are available. |
1.Alloy :6063,6061,6005 or according to customer’ s choice
2.Material:Aluminum
3.Suface Treatment: Mill Finished,Anodized ,Electrophoretic
coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF
Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer
.
4.Deep process: Milling, Drilling, Bending,Cutting.
5.Application:
Industry Aluminum profile used in cars, trains machinery
,electronics, medical and other industrial filed . In terms of
hardware, machinery, electromechanical parts, solar PV products,
aluminum frames are adopt as important auxiliary materials. We also
have aluminum profiles for radiators, fitness machinery, buildings,
lighting instrument, windpipes, oil pipelines, for instance.
6.Color:clear, satin, bronze, black, golden, silver, other
multicolor
7.Temper: T4, T5, T6 ,T66
Applications:

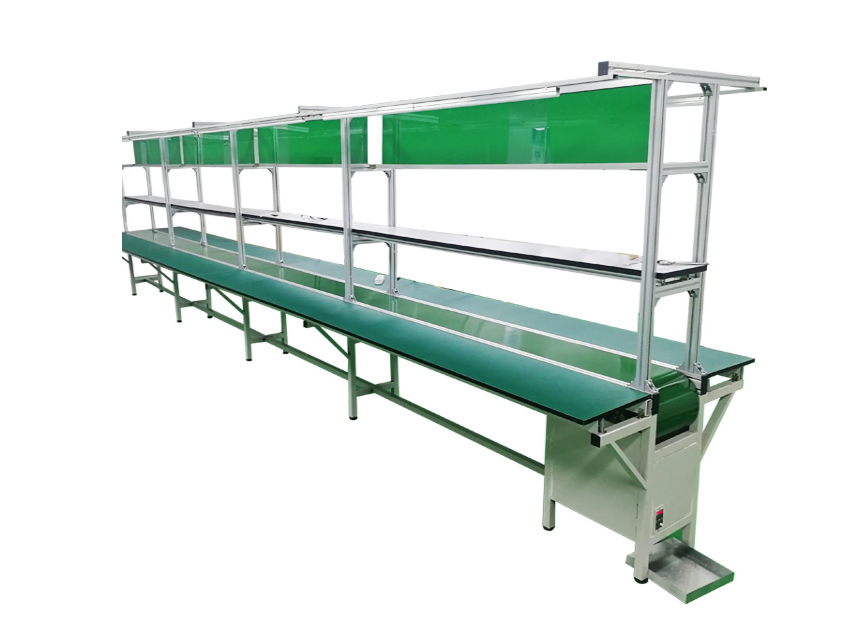

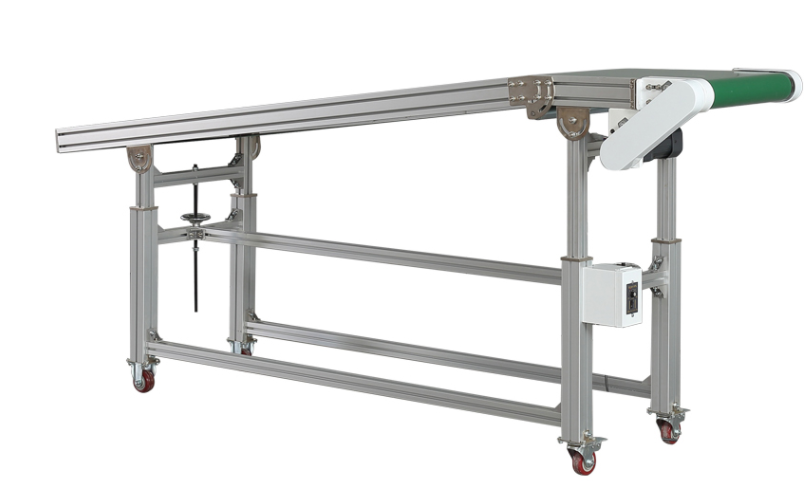

Mainly used for industrial production , such as automation
equipment , enclosure of the skeleton and the companies according
to their own customized mold machinery and equipment , such as
assembly line conveyor , hoist, dispenser, testing equipment,
shelves , etc., electronic machinery industries and clean room with
a gain majority.
Specifications:
1.Primary Technical Data
1)Chemical composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2)Mechanical property
Alloy | Temper | Tensile strength | Yield strength | Elongation |
6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% |
6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply
processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and
whole inspection before package.
4)Good performance, product warranty for 15 years.
