6063 / 6005 Aluminum Heatsink Extrusion Profiles With Bending Polishing

    Buy cheap 6063 / 6005 Aluminum Heatsink Extrusion Profiles With Bending Polishing from wholesalers

    Buy cheap 6063 / 6005 Aluminum Heatsink Extrusion Profiles With Bending Polishing from wholesalers
    • Buy cheap 6063 / 6005 Aluminum Heatsink Extrusion Profiles With Bending Polishing from wholesalers

    6063 / 6005 Aluminum Heatsink Extrusion Profiles With Bending Polishing

    Ask Lasest Price
    Brand Name : HT
    Model Number : KTH-007
    Certification : CA ,CE
    Payment Terms : T/T ,L/C
    Supply Ability : 100 000ton each month
    Delivery Time : 20days
    • Product Details
    • Company Profile

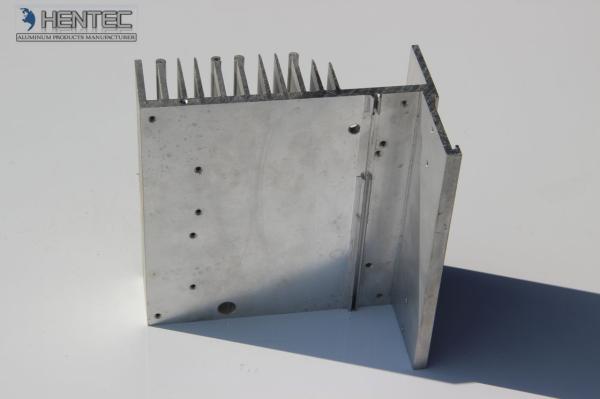

    6063 / 6005 Aluminum Heatsink Extrusion Profiles With Bending Polishing

    Descrition:


    Item

    6063 / 6005 Aluminum Heatsink Extrusion Profiles , With Bending , Polishing

    Surface Treatment

    Polishing, Powder coating, Spraying, Anodising, Zinc Plating and etc

    Tolerance

    +/-0.02~0.05mm

    Equipments

    a) CNC Machining Center

    b) Extrusion Mchine
    c) CNC Milling Machines
    d) Punching Machines
    e) Precision Cutting Machines
    f) Argon Welding Machines

    g) NC Bending Machine

    h) Anodized /Powder painted line

    Preferred Formats

    JPEG, PDF,CAD,IGS,STP

    Preferred Industries

    a) Communication Equipments

    b) Medical Equipments

    c) House Hardware

    d) Toy Air soft

    e) Mechanical Equipments

    f) Other customized Parts



    Applications:
    Aluminum heat sink is widely used on Machines , cars , lighter ...

    Specifications:
    1. Primary Technical Data
    1)Chemical composition

    Alloy

    Si

    Fe

    Cu

    Mn

    Mg

    Cr

    Zn

    Ti

    Impurity

    Al

    6063

    0.2-0.6

    0.35

    0.1

    0.1

    0.45-0.9

    0.1

    0.1

    0.1

    0.15

    Rest

    6061

    0.4-0.8

    0.7

    0.15-0.4

    0.15

    0.8-1.2

    0.04-0.35

    0.25

    0.15

    0.15

    Rest

    6060

    0.3-0.6

    0.1-0.3

    0.1

    0.1

    0.35-0.6

    -

    0.15

    0.1

    0.15

    Rest

    6005

    0.6-0.9

    0.35

    0.1

    0.1

    0.40-0.6

    0.1

    0.1

    0.1

    0.15

    Rest


    2) Mechanical property

    Alloy

    Temper

    Tensile strength

    Yield strength

    Elongation

    6063

    T5

    ≥ 160Mpa

    ≥ 110Mpa

    ≥ 8%

    T6

    ≥ 205Mpa

    ≥ 180Mpa

    ≥ 8%

    6061

    T6

    ≥ 265Mpa

    ≥ 245Mpa

    ≥ 8%


    Customized CNC machining , Extrusion amplifier heat sink zinc plating
    Competitive Advantage:

    1. Enforcing strict quality that meet ISO 9001:2008 requirements

    2. Superior design capabilities and manufacturing techniques

    3. Maintaining control of internal systems and processes

    4. Providing a safe and efficient working environment by adhering to safety procedures

    5. Offering flexibility to meet each individual customers needs

    Customized CNC machining , Extrusion amplifier heat sink zinc plating
