6063 Aluminum Electrical Shell , Aluminium Alloy Power Cover with
Optional Surface Treatment
Established in 2006 and located in Wuxi , which is called as a
paradise on the earth, Hentec Industry Co.,Ltd has been
continuously growing by offering quality products and excellent

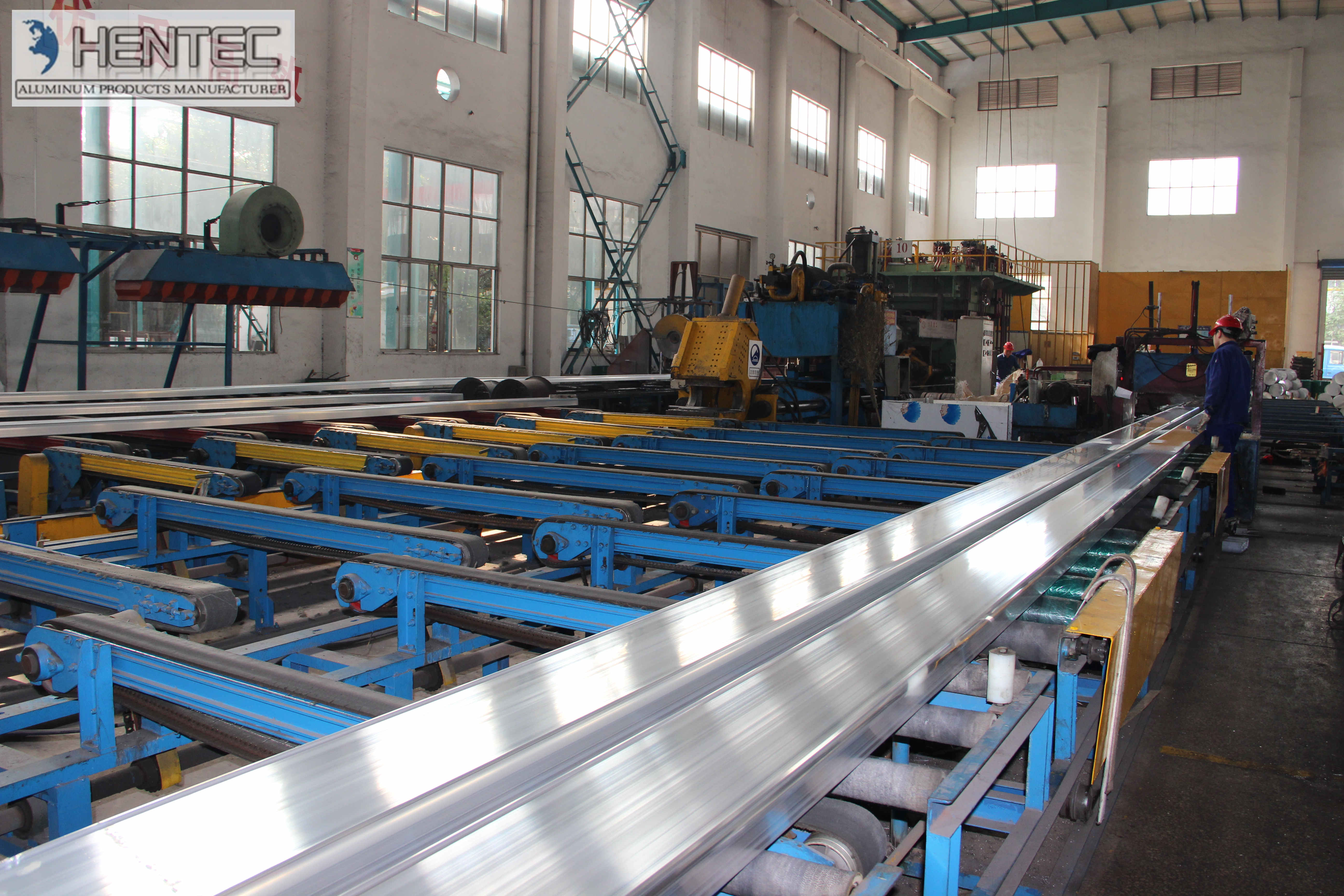

services. The plant occupies an area of 100,000 square meters. We
have aluminium extrusion equipment whose capability ranges from600
ton to 4500 ton and CNC processing equipment whose operation size
ranges from 10mm to 6000mm. Currently, the core business covers
aluminium extrusion, further processing, surface treatment and
assembling. We are now specialized in manufacturing various
aluminium profile products used in construction(frames for
partitions, glass curtain walls, mobile homes), lighting(radiators
for LED wall washers, LED linear lights, street lights, spot lights
and outdoor lights), and display(frames for teaching device,
televisions, commercial advertisement displays).
Description:
| Item |
6061 Aluminum Extrusions For Electronics , Anodized / Powder
Painted
|
| Material | Alloy 6063, 6061,6060,6005,6082 or according to customer’ s choice |
| Temper | T4, T5, T6 ,T66 |
| Surface | Anodize (clear, satin, bronze, black, golden, silver, other
multicolor) , electrophoresis, powder coating, PVDF coating, wood
grain painting, etc. |
| MOQ | 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40
feet container. |
| Profile type | Industry Aluminum profile used in cars, trains machinery ,trailers
,electronics, medical and other industrial filed . |
| Processing | Aluminium profile extruding ,Precise cutting,Straight
rectification,Bending,Drilling,Tapping,Stamping,Pulling,CNC mill,
CNC lathe. For precious machining and cutting, length tolerance can
be 0.2mm, hole tolerance can be 0.05mm . |
| Moulding | 1. Using our moulds, free; 2. Using customer’ s drawing, opening mould fee need to be paid . |
| Certificate | ISO14001:2004, ISO9001:2000 |
| Standard | Meet the China national standard GB/T6892-2006 and Europe standard
EN12020-1,2(2001) and American standard AAMA611-98. |
| FOB Port | Shanghai, etc. |
Applications:
Industry Aluminum profile used in cars, trains machinery
,electronics, medical and other industrial filed . In terms of
hardware, machinery, electromechanical parts, solar PV products,
aluminum frames are adopt as important auxiliary materials. We also
have aluminum profiles for radiators, fitness machinery, buildings,
lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1)Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2) Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
2.Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder
coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Competitive Advantage:
1) Engineering design and support.
2) Aluminum profiles deeply
processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and
whole inspection before package.
4) Good performance, product warranty for 15 years.
