Window Extrusions Aluminum , Aluminium Extrusion Profiles Section Window

Product Description

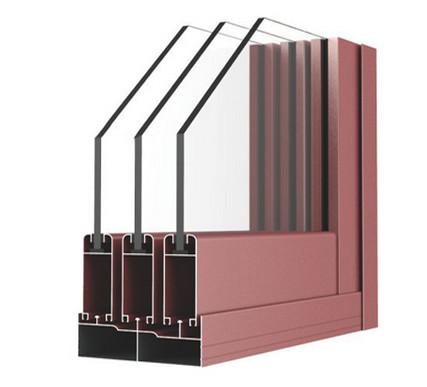

Europe Quality Aluminum Window Extrusion Profils / Aluminium Alloy Horizontal Sliding Window
1. Aluminum Frame:
A .Material: Aluminum alloy 6061,6063
B. Temper: T5
C. Profile thickness: 1.2mm--2.0mm. Or as customer's demand.
D. Surface treatment: Powder coating, Anodizing, Electrophoresis, Wood grain with any color
E. Color of Frame: White/champagne/grey/green/natural/wood grain .Or according to customer's needs
F. Function: Security, Heatproof, Waterproof, Decoration, and Airproof.

Color Chart for Sliding Window:
More color for window, you also can provide your color.

Applications:

Aluminum profile used for making aluminum door .There are many colors can be selected for surface treatment .The strength can be increased by higher wall thickness . It is possible to produce according to customized design .

Powder painted / Anodized Aluminium Window Profiles , aluminium extrusion sections

Specifications:

1. Primary Technical Data

1) Chemical composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	Rest
6060	0.3-0.6	0.1-0.3	0.1	0.1	0.35-0.6	-	0.15	0.1	0.15	Rest
6005	0.6-0.9	0.35	0.1	0.1	0.40-0.6	0.1	0.1	0.1	0.15	Rest

2) Mechanical property

Alloy	Temper	Tensile strength	Yield strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

Competitive Advantage:

1. Top Aluminium profile manufacturer for more than 10 years in China.
2. Diverse Products used in the fields of construction, industry and deep-processing.
3. Quality Control is put in the core position of our production.
4. Customized Production shows our capability in product design and process control.
5. Perfect Customer Services include careful packaging, quick delivery and good
after-sale service.

Powder painted / Anodized Aluminium Window Profiles , aluminium extrusion sections
