Anodized Aluminum End Clamp For Solar Roof Mounting System / 35mm /
40mm / 45mm /50mm
Specifications solar end clamp
1. Aluminium 6005-T5
2. Tilt-in nut easy install
3. 7-10 days fast delivery
4. AS/NZS 1170 Standard
5. Material AL6005-T5 & SUS 304 bolt
6. High class anodized aluminium
Solar framed panel mounting end clamp
Solar Clamp |

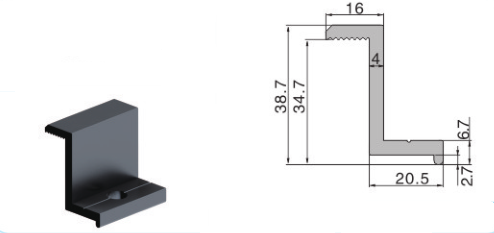

End Clamp (Fix 35mm/40mm/45mm/50mm solar panel frame) |
Item NO | Specification |
HT35 | End Clamp 35mm |
HT40 | End Clamp 40mm |
HT45 | End Clamp 45mm |
HT50 | End Clamp 50mm |
Features of mounting system
1.Widely Application
The structure is 100% made of anodized aluminum/galvanized
steel,with the quality of corrosion-resistance,light-weight
andstrong intensity. It can be used in extremely bad installation
condition.
2.Strong Compatibility
The structure can not only fit for different PV kits, but also work
with different PV arrangements which can be interchange randomly.
3.Safety and Reliability
Load-bearing,wind resistance and seismic resistance has been given
sufficient consideration. All of these functions have beentested
extremely, which will ensure the safety of the system.
4.Easy Installation
Most of the parts can be pre-assembled on factory, which not only
can to save your install time, but also your cost.
5.Flexibility
Considering the construction error, the structure has been
well-design that make it can adjust flexibly.
6.Warranty
10-year warranty for the mounting system and 25 years service time.
