Aluminum
bar and aluminum corner.pdf

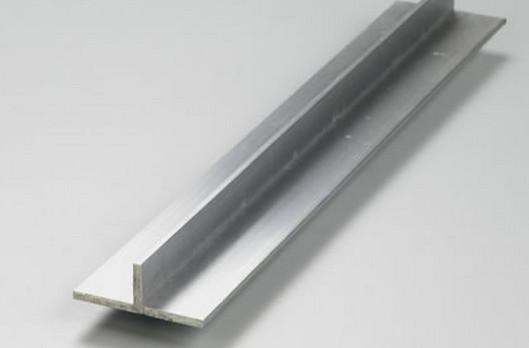

Anodized Aluminum Extrusion Bar PVDF Paint , Aluminum LED Lighting
Bar
1) temper:T4-T6 , T66
2) certificate:ISO9001:2008
3) surface treatment:anodize
4) Advanced surface oxygenate coloring process
Description:
Item | Aluminum Extrusion bar |
Material | Alloy 6063, 6061 or according to customer’ s choice |
Temper | T3, T4, T5, T6 |
Surface | Anodize (clear, satin, bronze, black, golden, silver, other
multicolor) , electrophoresis, powder coating, PVDF coating, wood
grain painting, etc. |
MOQ | 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40
feet container. |
Profile type | Industry Aluminum profile used in cars, trains machinery ,trailers
,electronics, medical and other industrial filed . |
Machining | 1. milling; 2. Drilling; 3. Bending; 4. Cutting ... |
Moulding | 1. Using our moulds, free; 2. Using customer’ s drawing, opening
mould fee need to be paid . |
Certificate | ISO14001:2004, ISO9001:2000 |
FOB Port | Shanghai, etc. |
1. Alloy :6063,6061,6005 or according to customer’ s choice
2. Material:Aluminum
3. Suface Treatment: Mill Finished,Anodized ,Electrophoretic
coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF
Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer
.
4. Deep process: Milling, Drilling, Bending,Cutting.
5. Application:
Industry Aluminum profile used in cars, trains machinery
,electronics, medical and other industrial filed . In terms of
hardware, machinery, electromechanical parts, solar PV products,
aluminum frames are adopt as important auxiliary materials. We also
have aluminum profiles for radiators, fitness machinery, buildings,
lighting instrument, windpipes, oil pipelines, for instance.
6. Color:clear, satin, bronze, black, golden, silver, other
multicolor
7. Temper: T4, T5, T6 ,T66
Applications:
Industry Aluminum profile used in cars, trains machinery
,electronics, medical and other industrial filed . In terms of
hardware, machinery, electromechanical parts, solar PV products,
aluminum frames are adopt as important auxiliary materials. We also
have aluminum profiles for radiators, fitness machinery, buildings,
lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1) Chemical composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2) Mechanical property
Alloy | Temper | Tensile strength | Yield strength | Elongation |
6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% |
6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
2. Specifications:
Competitive Advantage:
1) Engineering design and support.
2) Aluminium profiles deeply
processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and
whole inspection before package.
4) Good performance, product warranty for 15 years.
